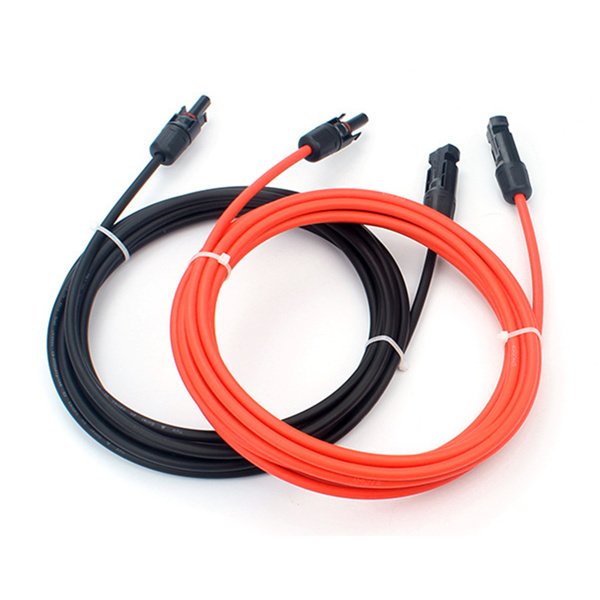

Black+Red Solar Panel Extension Cable Wire Solar Connectors 12 AWG Gauge
Feature:
-[Safety]Prevent short circuit and leakage. Suitable for internal use and connection to insulated equipment
-[High Performance]High current carrying capacity; durable; long-term use
-[HIGH QUALITY]Anti-UV; water; ozone; fluid; oil; salt and general weathering

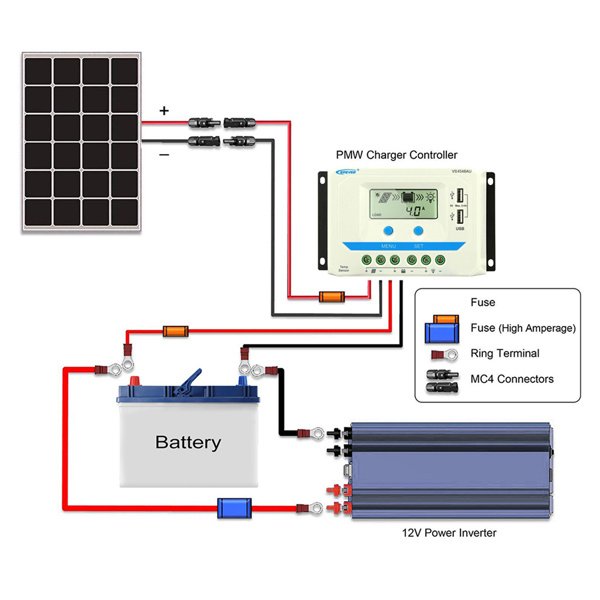

-[VERSATILE USE]Hard plastic connectors on each end. Suitable for solar panels; DC circuits; inverter wiring
-[LONG LIFE]Designed for long life and outdoor applications. Good abrasion resistance; excellent softness and peel performance connector
Notice:
- Actual color may be slightly different from the image due to different monitors and lighting effects. Due to manual measurement; please allow slight deviation error
- Due to the test inspection; there will be slight abrasion marks on the wire shell; please allow slight abrasion marks; there is no problem with the internal fiber
Specification:
-Color: black red
-Connector insulation material: PC/PA
-Connector contact material: copper; silver plated

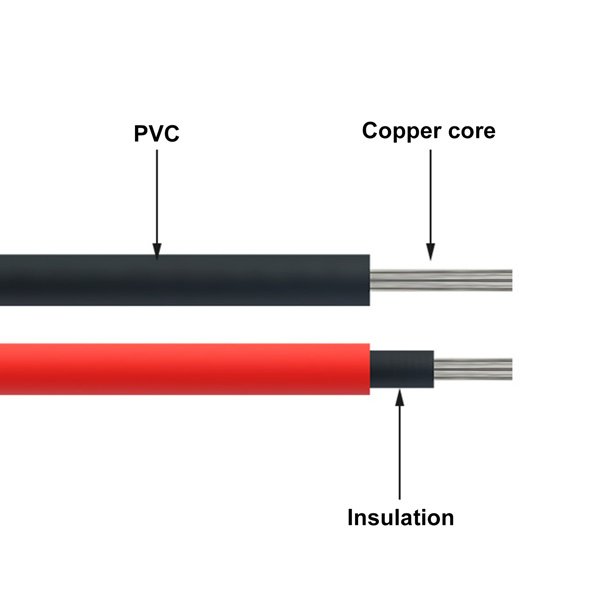

-Wire conductor material: bare copper
-Wire insulation material: Cross-linked polyethylene (XLP)
-Test voltage: 6 kV (50 Hz)
-Working temperature: -40°C ~ 85°C
-Certification: IP 67 protection class; safety class ii; flame retardant class UL94-V0
-Contact resistance: ≤5mΩ
-Insertion/Extraction force: ≤50N/≥50N
-Locking system: snap-in
12AWG wire
- Diameter: 12AWG 4mm²
-Maximum. Amperage per conductor: 55A/70 A
-Maximum. Voltage: 600 volts
-Temperature Rating: -104°F to 194°F
Packaging includes:
-1x Solar Panel Extension Cable 1 (1 pair)
